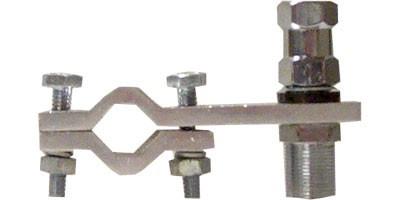

- This mount makes it easy to attach larger antennas to horizontal mirror arms
Description
This mount has a heavy-duty stud and double groove, allowing it to easily attach to horizontal mirror arms or bars measuring .5" - 1.25" in diameter. The twin 1.5" bolts hold the mount firmly to the bar, while the HD stud supports larger antennas. Mount includes a PL-259 compatible antenna stud.
Specs
| Model / SKU: | PTHM2-HDLX |
| Recommended for: |
This heavy-duty mirror mount is a great option for pick-up and semi drivers. For antennas up to 5' tall. Will fit horizontal mirror arms or bars measuring .5" - 1.25" in diameter. |
| Compatible with: | All fiberglass and center-load antennas that use a standard 3/8" x 24 threaded base. Requires a PL-259 barrel-style coax connection. |
| Installation Notes: | Remove the included 1.5" inch bolts from the mounting plate. Slide the mount around the horizontal bar and reattach the bolts. |
| Mount Location: | Flat Surface (Roof, Bumper), Mirror / Bar |
| Stud Type: | PL-259 (Barrel) |
| Material: | Aluminum mount and chrome plated brass stud |
| Product Includes: | Horizontal Mount and PL-259 compatible stud Antenna and coax sold separately |
Details
This will fit from a ½” bar mount to a 1 ¼” horizontal bar mount, and is 1” wide.
